Product Overview

임베디드 비전 모듈에서 클라우드 비전 시스템까지 제공합니다.

      제품

      응용목적에 적합한 인공지능 센서카메라를 제공합니다.

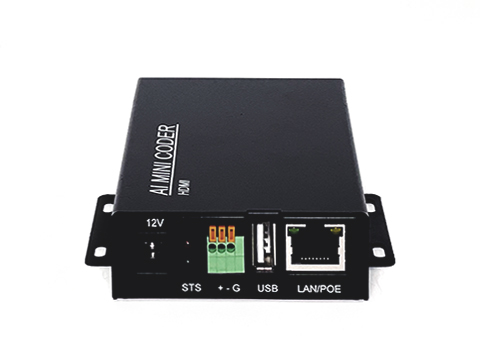

      제품명 AI Vision Box MINI-H


















      Device Specification

      Hardware Processor CPU: Quad-core ARM Cortex-A7 1.2Ghz
      Memory/Storage 1GB LPDDR/8Gb EMMC
      Video Input IP : RTSP Receiver, Max. 1920*1080@30FPS, ONVIF2.0
      HDMI
      Video Output RTSP Transmitter, Max. 1920*1080@30FPS, ONVIF2.0
      HDMI
      Network 10/100 Mbps
      Interface Mini-USB, Alarm Out, USB, Micro SD Slot
      Power PoE 지원, DC 12.0V, 0.5A, 6W
      size 71(W) x 96(H) x 26(D) mm, < 200g

      Software Operating System Embedded Linux 4.4
      AI Inference Engine N2Lab VAI(Vision AI Inference ) Engine 1.0 (자체 추론엔진)
      - Object Detector(Default)
      - Object Tracker(Option)
      - Abnormal Situation/Behavior Detector(Option)
      Application Support ※ 기타 수요맞춤형(On-Demand) 응용개발 지원
      Inference Throughput 10 FPS ~ 30 FPS
      CODEC Support H.264 BP/MP/HP, Up to 1920*1080@30FPS, JPEG
      H.265
      Technical Support Specific Domain Transfer Learning & Inference Engine Update

      ※ In case a customer provides training video datasets.
      Integration Support Integration with 3rd Party Solution or Cloud Service
